Reinforced Concrete Ground Beams and Bored Bearing Piles Installation in Finchley

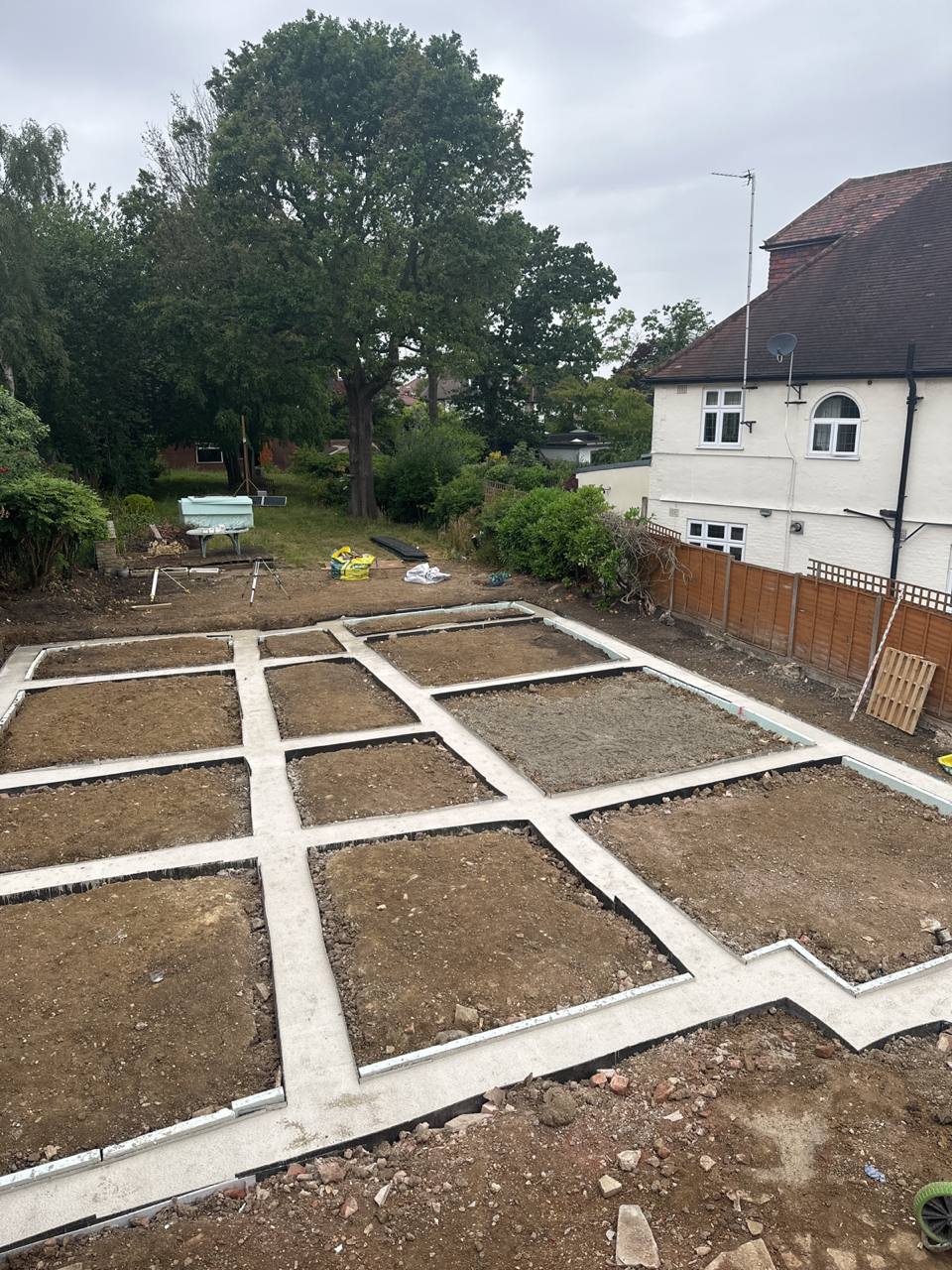

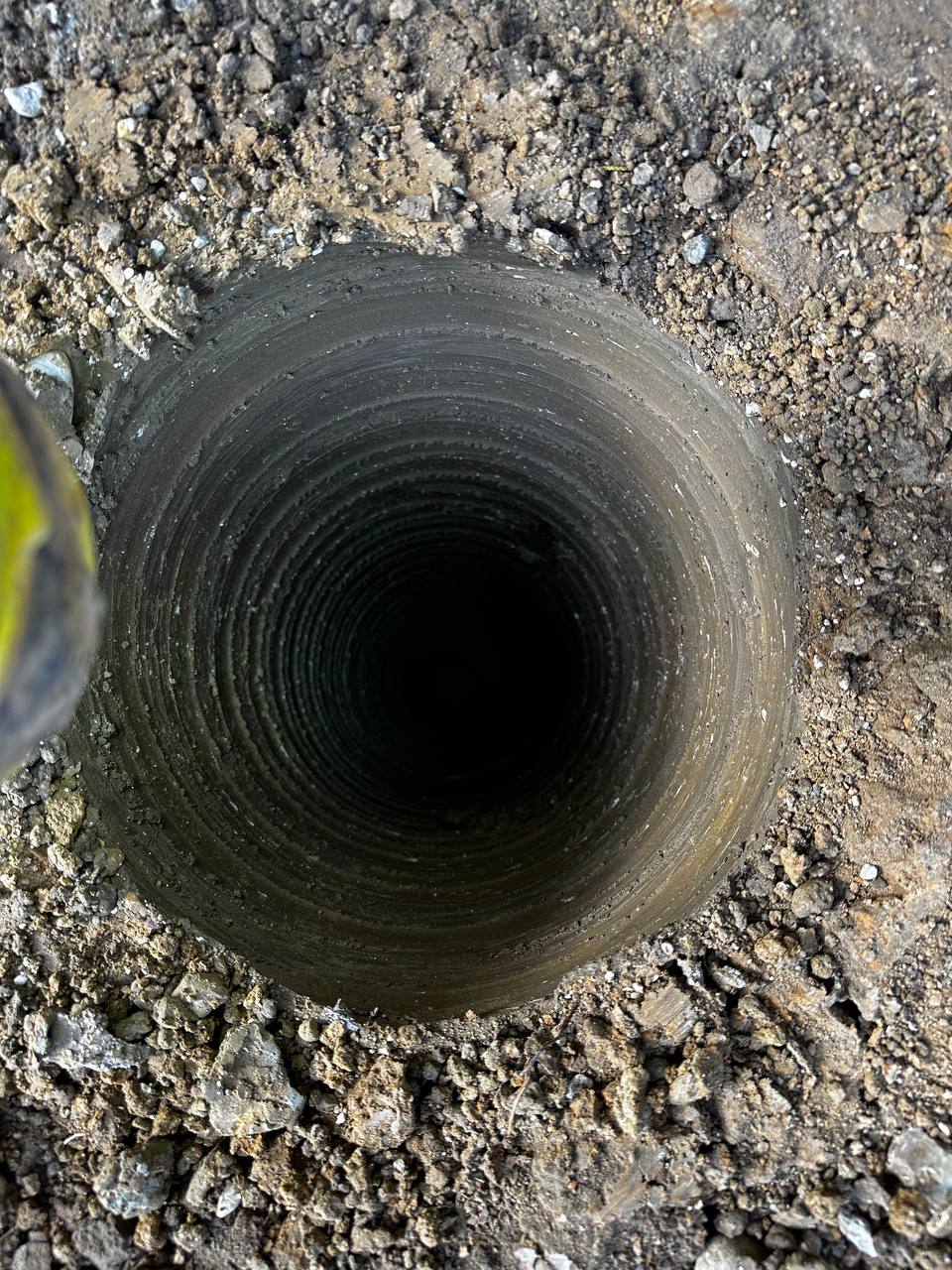

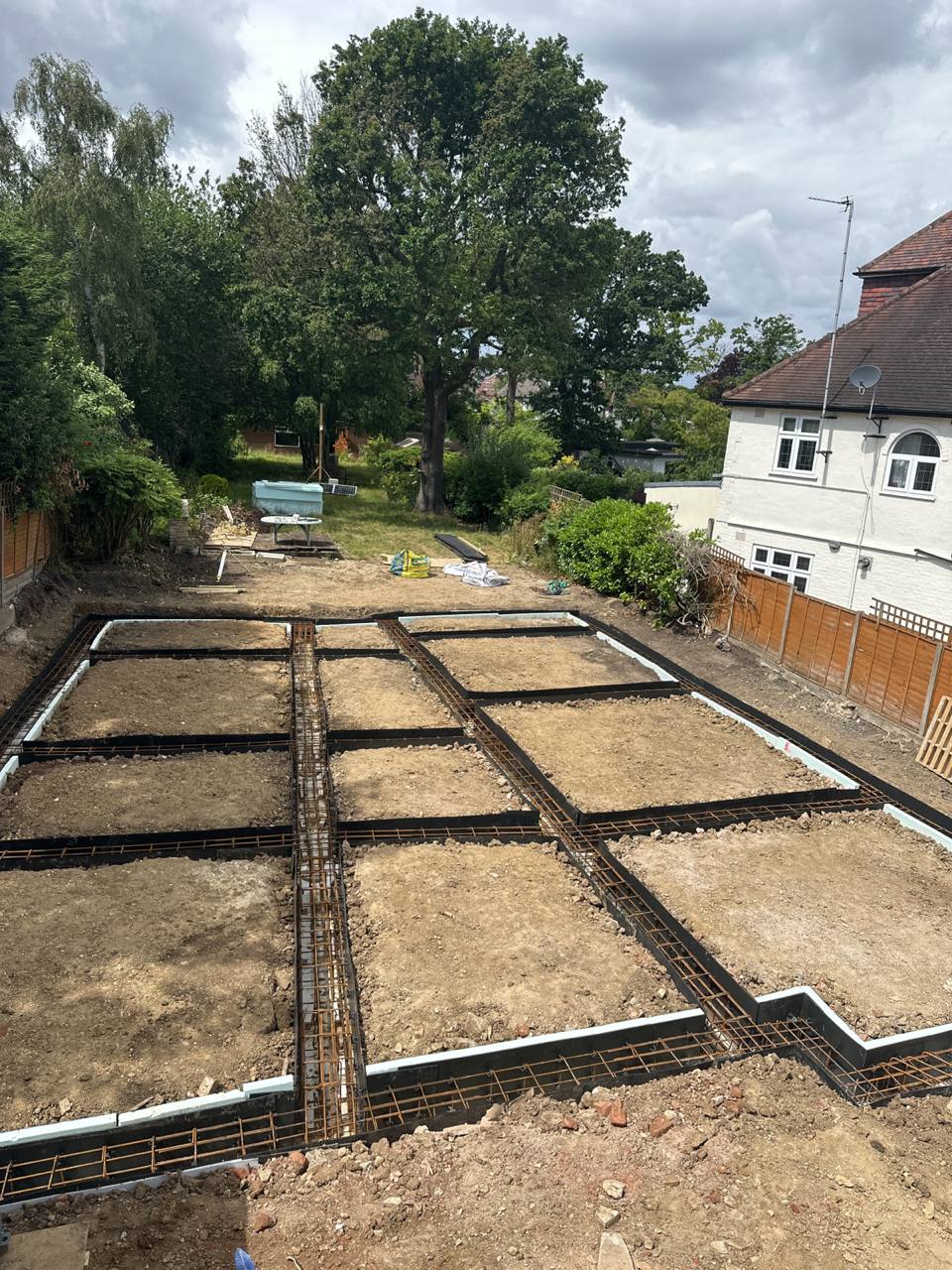

The foundation scheme included the installation of 115 linear metres of reinforced concrete ground beams measuring 500mm wide by 500mm deep. These beams were structurally integrated with 23 bored bearing piles of 300mm diameter, constructed to depths of up to 9 metres to achieve suitable load-bearing strata.

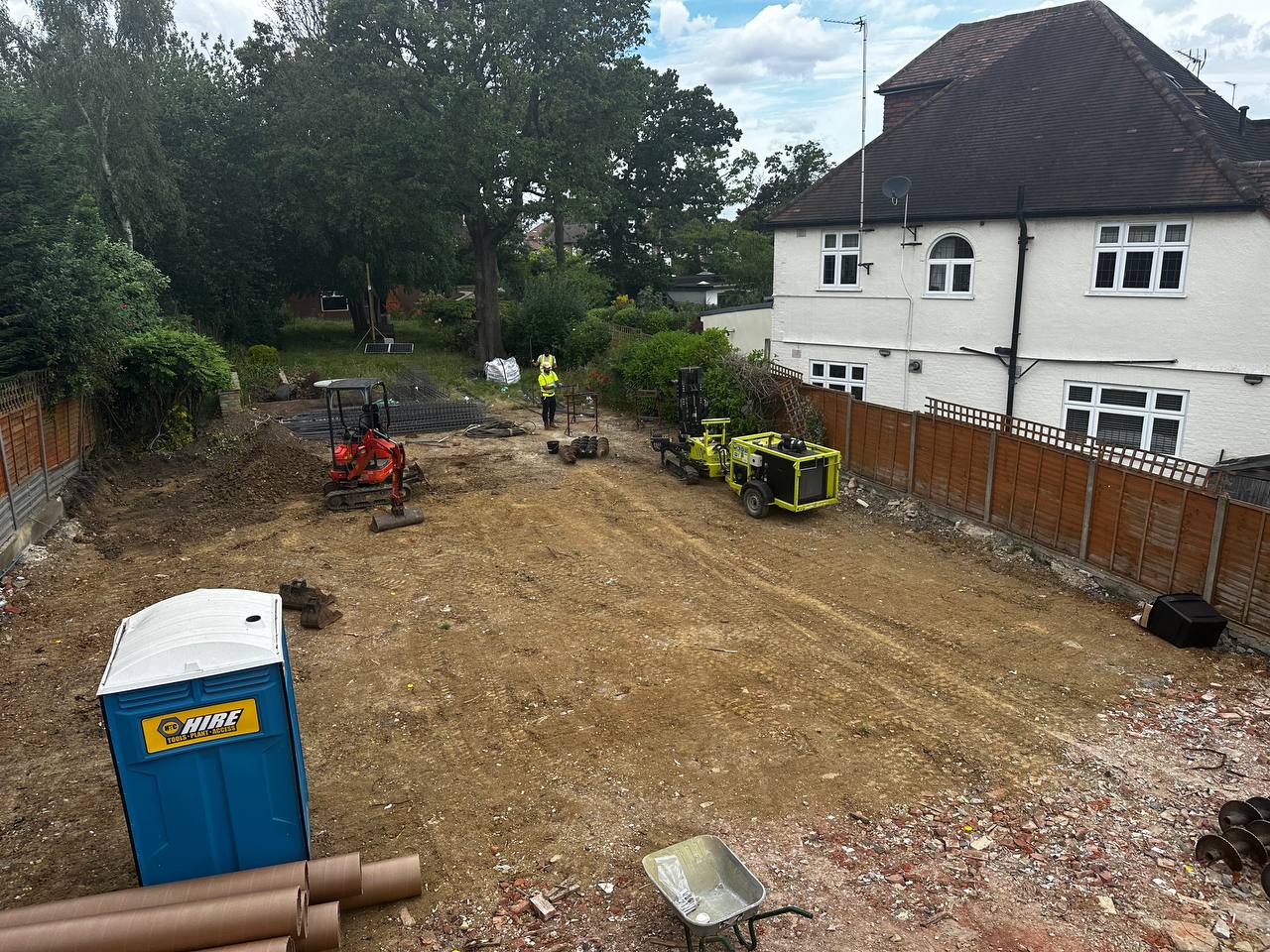

Bored piling was selected as the most appropriate method due to restricted site access, nearby residential properties, and the need to minimise vibration and noise. This approach ensured controlled excavation, precise reinforcement placement, and high-quality concrete pouring, resulting in a robust and compliant substructure system.
The reinforced ground beam network distributes structural loads efficiently across the piled foundation, improving resistance to differential settlement and enhancing the durability of the residential superstructure. All works were carried out in accordance with UK building regulations and best practice standards for residential foundation construction.
This project demonstrates our capability in delivering technically complex piling and reinforced concrete foundation solutions within urban environments, ensuring programme efficiency, safety, and long-term performance.
